On this last post I am going to cover the monitoring (with Prometheus and Grafana) for OpenSearch and Fluentd.

FluentD

If you recall from part-1, we set up a specific configuration for Prometheus in Fluentd

main-fluentd-conf.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: fluentd-es-config
  namespace: logging
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
data:
  fluent.conf: |-
    <source>
      type forward
      bind 0.0.0.0
      port 32000
    </source>

    [...]

    @include /fluentd/etc/prometheus.conf

    [...]

Here, we’re adding a Prometheus configuration that will allow us to monitor some metrics coming from FluentD.

prometheus-conf.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: fluentd-prometheus-config
  namespace: logging
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
data:
  prometheus.conf: |-
    <source>
      @type prometheus
      bind "#{ENV['FLUENTD_PROMETHEUS_BIND'] || '0.0.0.0'}"
      port "#{ENV['FLUENTD_PROMETHEUS_PORT'] || '24231'}"
      metrics_path "#{ENV['FLUENTD_PROMETHEUS_PATH'] || '/metrics'}"
    </source>

    <source>
      @type prometheus_output_monitor
      interval 10
    </source>

    <filter kube.**>
      @type prometheus
      <metric>
        name fluentd_input_status_num_records_total
        type counter
        desc The total number of incoming records
        <labels>
          tenant_id ${tenant_id}
        </labels>
      </metric>
    </filter>

This configuration will expose, other than basic fluentd’s metrics, also a metric that will tell us how many logs grouped by tenant_id we’re receving from FluentBit.

Then, we define our ServiceMonitor that will allow Prometheus to scrape metrics from FluentD

fluentd-servicemonitor.yaml

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: fluentd
  namespace: monitoring
  labels:
    k8s-app: fluentd-logging
spec:
  selector:
    matchLabels:
      k8s-app: fluentd-logging
  namespaceSelector:
    matchNames:
      - logging
  endpoints:
  - port: metrics
    path: /metrics

Be sure to have the label k8s-app: fluentd-logging for the FluentD service.

At the end we can import this dashboard to our Grafana instance.

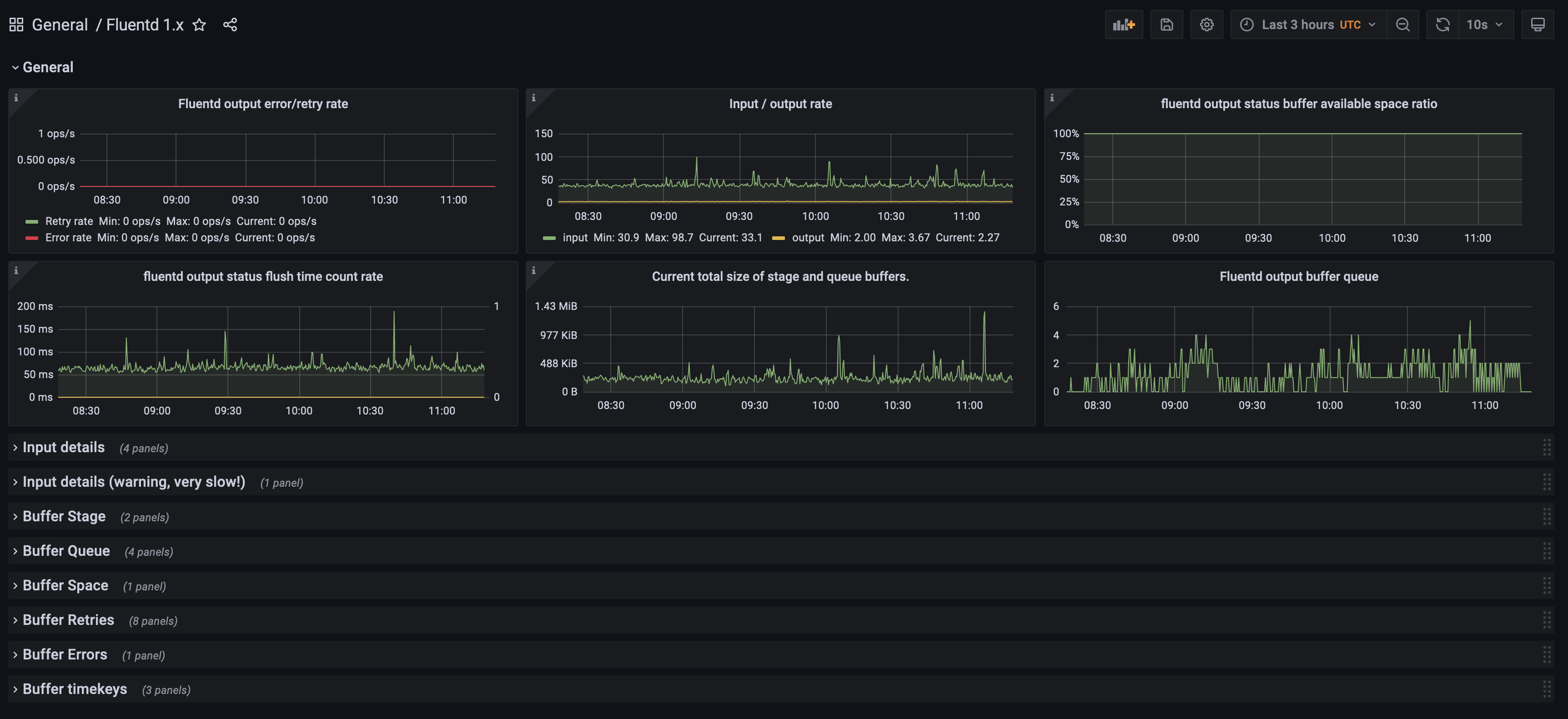

fluentd_grafana_dashboard

Once we have this dashboard, we can customize it by adding a panel for the metric we exposed for the field tenant_id; this panel will query Prometheus for this metric sum(rate(fluentd_input_status_num_records_total[1m])) by (tenant_id).

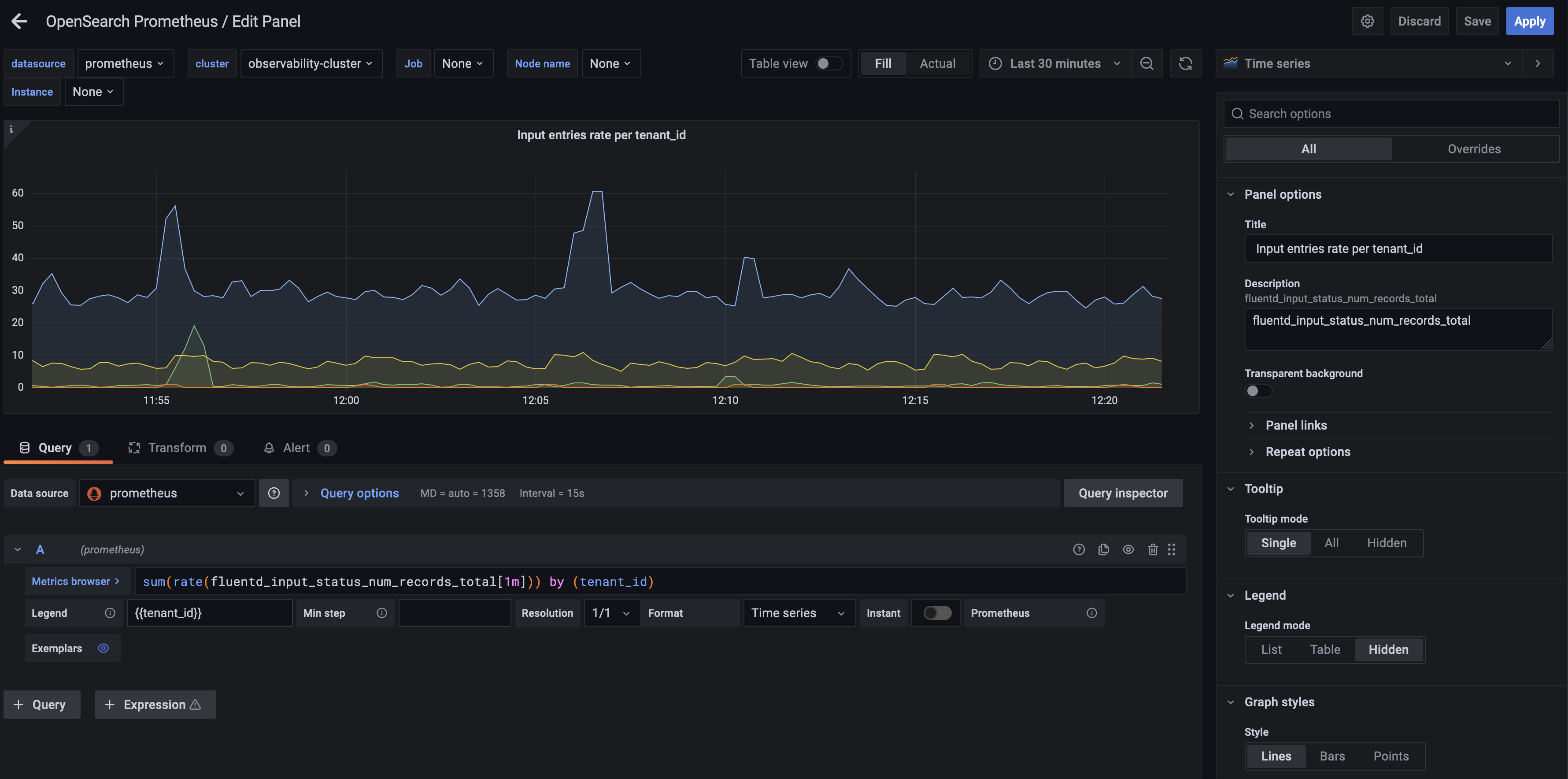

fluentd_grafana_dashboard_tenant_id

OpenSearch

In order to monitor OpenSearch with Prometheus and Grafana, we need to install a plugin on top of the OpenSearch docker’s base image.

FROM opensearchproject/opensearch:1.2.0
RUN /usr/share/opensearch/bin/opensearch-plugin install -b https://github.com/aparo/opensearch-prometheus-exporter/releases/download/1.2.0/prometheus-exporter-1.2.0.zip

and then use this image for the OpenSearch statefulset.

Once the new pods are up and running we can define the ServiceMonitor that will scrape the metrics for OS.

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: opensearch
  namespace: monitoring
  labels:
    app: opensearch
spec:
  endpoints:
  - basicAuth:
      password:
        name: opensearch-admin-credentials
        key: password
      username:
        name: opensearch-admin-credentials
        key: user
    port: http
    interval: 5s
    scheme: https
    tlsConfig:
      insecureSkipVerify: true
    path: /_prometheus/metrics
  selector:
    matchLabels:
      app.kubernetes.io/name: opensearch
      prometheus.io/scrape: "true"
  namespaceSelector:
    matchNames:
      - "logging"
---
apiVersion: v1
kind: Secret
metadata:
  name: opensearch-admin-credentials
  namespace: monitoring
type: Opaque
data:
  password: <omitted>
  user: <omitted>

As you can see this ServiceMonitor is a bit different from the other one as we need to define:

  • basic auth credentials: for this demo here I am using the Admin credential used by OpenSearch Dashboard. Be sure to use a dedicated user for Prometheus (with the right privileges).
  • scheme: usually, inside a Kubernetes cluster, we scrape metrics by using http. In this case OpenSearch is exposing https hence the scheme.
  • tlsConfig: we need to skip the ssl certs verify as they are self signed.
  • path: as stated from the documentation, the path is /_prometheus/metrics

Then we can use this dashboard in order to display those metrics with Grafana.

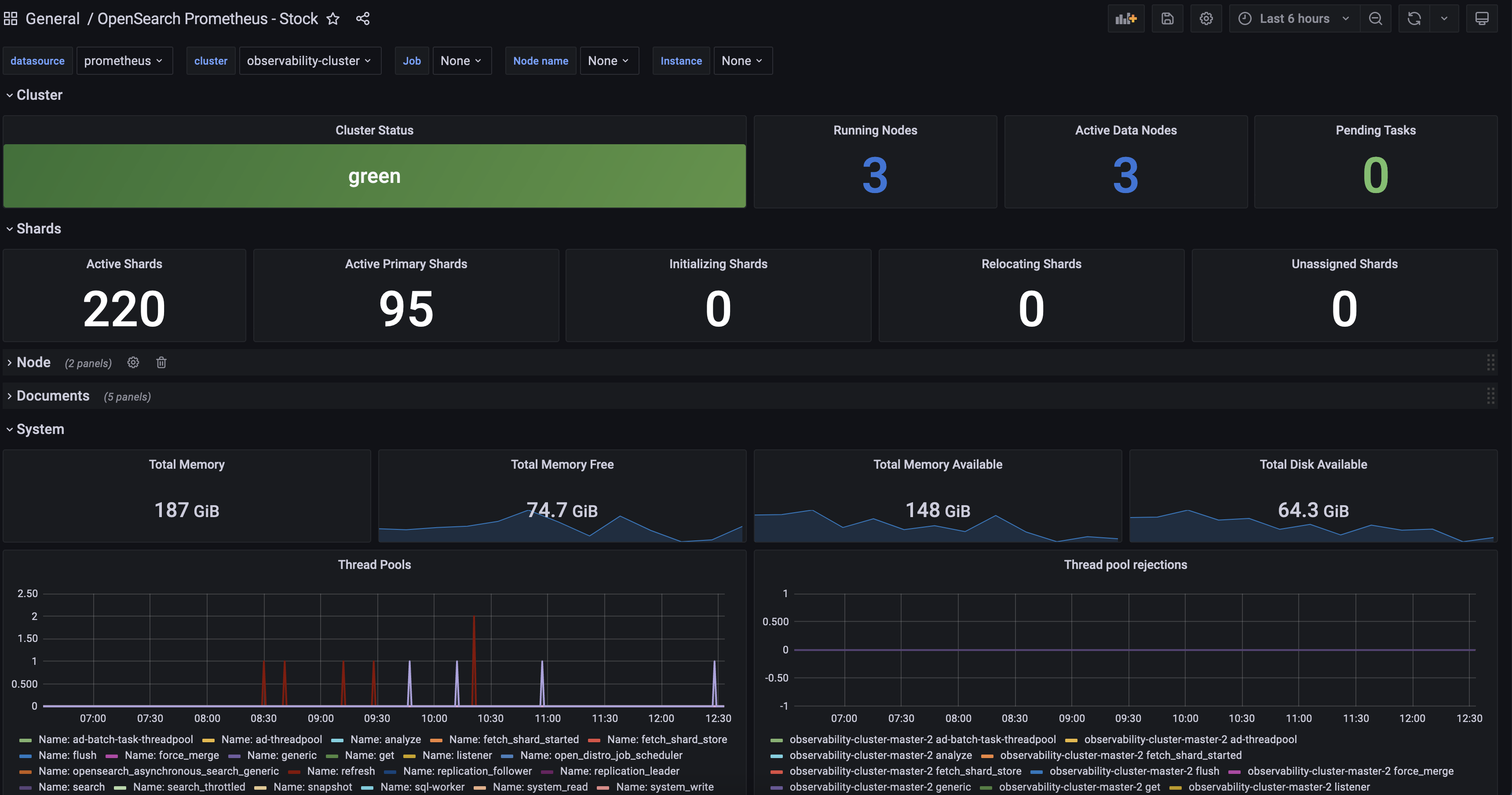

opensearch_grafana_dashboard

Conclusion

With this post we finished the setup and monitoring for our logging infrastructure. By leveraging OpenSearch, FluentBit, FluentD we created an alternative (to ES) multi-tenant logging stack that will allow the dev teams to search and filters for their logs. At the end we also saw how to monitoring this infrastructure by using Prometheus and display these metrics with Grafana.
