This is a series. You can find part 1 here and part 3 here.

We were left on part-1 with a fully functional log pipeline. As I said, we’re going to check how to achieve a single shared index in OpenSearch.

Shared Index

If you recall, on the previous part we set a field on each document we were indexing in OpenSearch by leveraging the FluentD record_transformer plugin.

main-fluentd-conf.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: fluentd-es-config
  namespace: logging
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
data:
  fluent.conf: |-
    <source>
      @type forward
      bind 0.0.0.0
      port 32000
    </source>

    <filter kube.**>
      @type record_transformer
      remove_keys $.kubernetes.annotations, $.kubernetes.labels, $.kubernetes.pod_id, $.kubernetes.docker_id, logtag
    </filter>

    <filter kube.tenant-1.**>
      @type record_transformer
      <record>
        tenant_id "tenant-1"
      </record>
    </filter>

    <filter kube.tenant-2.**>
      @type record_transformer
      <record>
        tenant_id "tenant-2"
      </record>
    </filter>

    @include /fluentd/etc/prometheus.conf
    @include /fluentd/etc/tenant-1.conf
    @include /fluentd/etc/tenant-2.conf
    [...]

Basically here we are adding the field “tenant_id” to each log coming from different tenants (fluent bit instances). This field will be used to restrict access to the tenants on OpenSearch’s “Discover” section and to achieve a routing that forwards each search request for the “tenant_id” to a specific shard without forwarding the request to the primary or replica of all N shards. By simple means: all documents with the same routing value will be stored on the same shard.

shard = hash(routing) % number_of_primary_shards

By default the routing value is equal to the document’s _id but we are allowed to override it by supplying our custom field. Let’s start by refactoring the above fluentd configuration:

main-fluentd-conf.yaml

    [...]
    @include /fluentd/etc/prometheus.conf
    @include /fluentd/etc/general-tenant.conf

We just provide a single fluentD general-tenant.conf file where we match all the logs coming with the kube tag.

general-tenant-conf.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: general-tenant-config
  namespace: logging
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
data:
  general-tenant.conf: |-
    <match kube.**>
      @type elasticsearch
      @id out_es_general_tenant
      @log_level "info"
      routing_key tenant_id # <- Added here
      include_tag_key true
      host "#{ENV['FLUENT_ELASTICSEARCH_HOST'] || 'localhost'}"
      port "#{ENV['FLUENT_ELASTICSEARCH_PORT'] || '9200'}"
      user "#{ENV['FLUENT_ELASTICSEARCH_USER'] || 'admin'}"
      password "#{ENV['FLUENT_ELASTICSEARCH_PASSWORD'] || 'admin'}"
      scheme "#{ENV['FLUENT_ELASTICSEARCH_SCHEME'] || 'http'}"
      ssl_verify false
      reload_connections false
      reconnect_on_error true
      reload_on_failure true
      logstash_prefix "application-logs"
      logstash_dateformat "%Y.%m"
      logstash_format true
      type_name "_doc"
      suppress_type_name true
      template_overwrite true
      request_timeout 30s
      <buffer>
        @type file
        path /var/log/fluentd-buffers/general-tenant/kubernetes.system.buffer
        retry_type exponential_backoff
        flush_thread_count 2
        flush_interval 10s
        retry_max_interval 30
        retry_forever true
        chunk_limit_size 8M
        queue_limit_length 512
        overflow_action block
      </buffer>
    </match>

Note that this file will match every log streams in this way but we can create more specific matching if we’ll ever need it just by specificing another configuration before this general one. Note that we added routing_key tenant_id in this configuration and ended up by creating a single monthly index named “application-logs”

OpenSearch Security

Now we need to isolate each tenant from each other; we need a way to let the users from a tenant to see only their logs. We can achive this with the OpenSearch Security plugin (installed by default) and configuring the related roles / roles-mapping and tenant:

create-role-conf.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: create-role
data:
  tenant-1-create-role.json: |-
    {
      "cluster_permissions": [],
      "index_permissions": [{
        "index_patterns": [
          "application-logs-*"
        ],
        "dls": "{\"bool\": {\"must\": {\"match\": { \"tenant_id\":\"tenant-1\"}}}}",
        "fls": [],
        "masked_fields": [],
        "allowed_actions": [
          "read",
          "get",
          "search"
        ]
      }],
      "tenant_permissions": [{
        "tenant_patterns": [
          "tenant-1"
        ],
        "allowed_actions": []
      }]
    }
  tenant-2-create-role.json: |-
    {
      "cluster_permissions": [],
      "index_permissions": [{
        "index_patterns": [
          "application-logs-*"
        ],
        "dls": "{\"bool\": {\"must\": {\"match\": { \"tenant_id\":\"tenant-2\"}}}}",
        "fls": [],
        "masked_fields": [],
        "allowed_actions": [
          "read",
          "get",
          "search"
        ]
      }],
      "tenant_permissions": [{
        "tenant_patterns": [
          "tenant-2"
        ],
        "allowed_actions": []
      }]
    }

Basically here we’re telling OpenSearch to create two roles: one for tenant-1 and the other for tenant-2. For each we’re restricting OS to only return the documents where the field tenant_id is equal to the relative tenant for the index name “application-logs”.

Then we can create the tenant configuration: each user that will login to OpenSearch will be assigned to the relative tenant.

apiVersion: v1
kind: ConfigMap
metadata:
  name: create-tenant
data:
  tenant-1-create-tenant.json: |-
    {
      "description": "A tenant for the Tenant-1 dev team."
    }
  tenant-2-create-tenant.json: |-
    {
      "description": "A tenant for the Tenant-2 dev team."
    }

And the mapping (here I get a backend role from the LDAP as I configured LDAP integration in OpenSearch)

apiVersion: v1
kind: ConfigMap
metadata:
  name: create-role-mapping
data:
  tenant-1-create-role-mapping.json: |-
    {
      "backend_roles" : [ "Tenant-1_ROLE_FROM_LDAP" ],
      "hosts" : [],
      "users" : []
    }
  tenant-2-create-role-mapping.json: |-
    {
      "backend_roles" : [ "Tenant-2_ROLE_FROM_LDAP"  ],
      "hosts" : [],
      "users" : []
    }

So how do we send this Jsons to OpenSearch? We could have created this resources just by using the OpenSearch UI. Since we want to keep everything reproducible I make use of an init container. (NB: mount username and password in the init container and pass them on the script below)

apiVersion: batch/v1
kind: Job
metadata:
  name: init-opensearch
spec:
  ttlSecondsAfterFinished: 100
  backoffLimit: 1
  template:
    spec:
      containers:
      - name: curl
        image: curl
        command:
          - /bin/sh
          - -c
          - |
            curl -XPUT -u $USERNAME:$PASSWORD  --insecure --header "Content-Type: application/json" --data-binary "@/var/tenant/tenant-1-create-tenant.json" https://opensearch-cluster-master:9200/_plugins/_security/api/tenants/tenant-1
            curl -XPUT -u $USERNAME:$PASSWORD  --insecure --header "Content-Type: application/json" --data-binary "@/var/tenant/tenant-2-create-tenant.json" https://opensearch-cluster-master:9200/_plugins/_security/api/tenants/tenant-2

            curl -XPUT -u $USERNAME:$PASSWORD  --insecure --header "Content-Type: application/json" --data-binary "@/var/role/tenant-1-create-role.json" https://opensearch-cluster-master:9200/_plugins/_security/api/roles/tenant-1
            curl -XPUT -u $USERNAME:$PASSWORD  --insecure --header "Content-Type: application/json" --data-binary "@/var/role/tenant-2-create-role.json" https://opensearch-cluster-master:9200/_plugins/_security/api/roles/tenant-2

            curl -XPUT -u $USERNAME:$PASSWORD  --insecure --header "Content-Type: application/json" --data-binary "@/var/role-mapping/tenant-1-create-role-mapping.json" https://opensearch-cluster-master:9200/_plugins/_security/api/rolesmapping/tenant-1
            curl -XPUT -u $USERNAME:$PASSWORD  --insecure --header "Content-Type: application/json" --data-binary "@/var/role-mapping/tenant-2-create-role-mapping.json" https://opensearch-cluster-master:9200/_plugins/_security/api/rolesmapping/tenant-2

        volumeMounts:
          - mountPath: /var/tenant/tenant-1-create-tenant.json
            name: create-tenant
            subPath: tenant-1-create-tenant.json
          - mountPath: /var/tenant/tenant-2-create-tenant.json
            name: create-tenant
            subPath: tenant-2-create-tenant.json
          - mountPath: /var/role/tenant-1-create-role.json
            name: create-role
            subPath: tenant-1-create-role.json
          - mountPath: /var/role/tenant-2-create-role.json
            name: create-role
            subPath: tenant-2-create-role.json
          - mountPath: /var/role-mapping/tenant-1-create-role-mapping.json
            name: create-role-mapping
            subPath: tenant-1-create-role-mapping.json
          - mountPath: /var/role-mapping/tenant-2-create-role-mapping.json
            name: create-role-mapping
            subPath: tenant-2-create-role-mapping.json
      restartPolicy: Never
      volumes:
        - name: create-tenant
          configMap:
            name: create-tenant
        - name: create-role
          configMap:
            name: create-role
        - name: create-role-mapping
          configMap:
            name: create-role-mapping

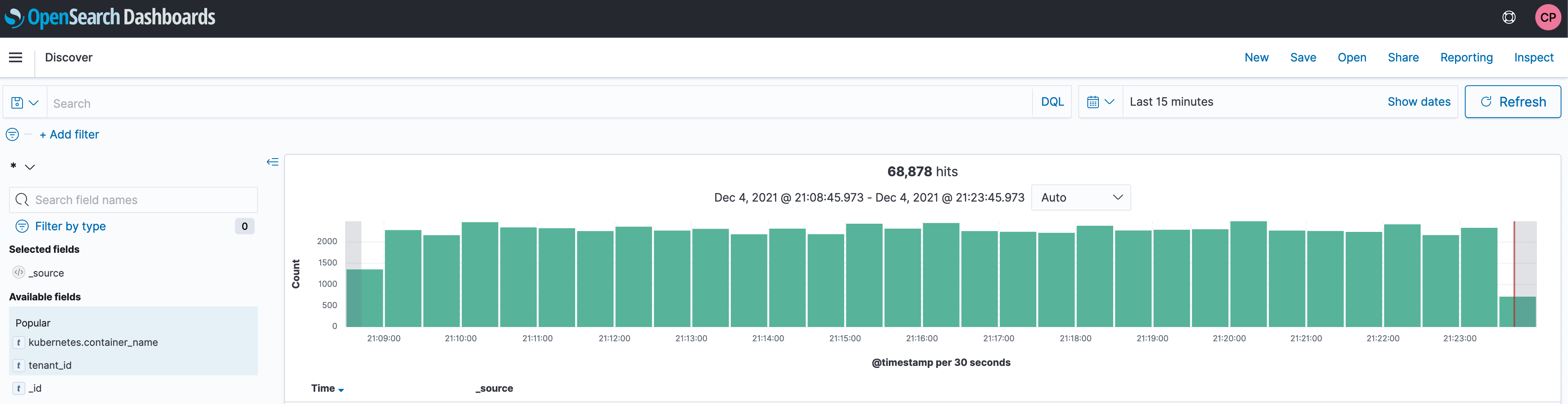

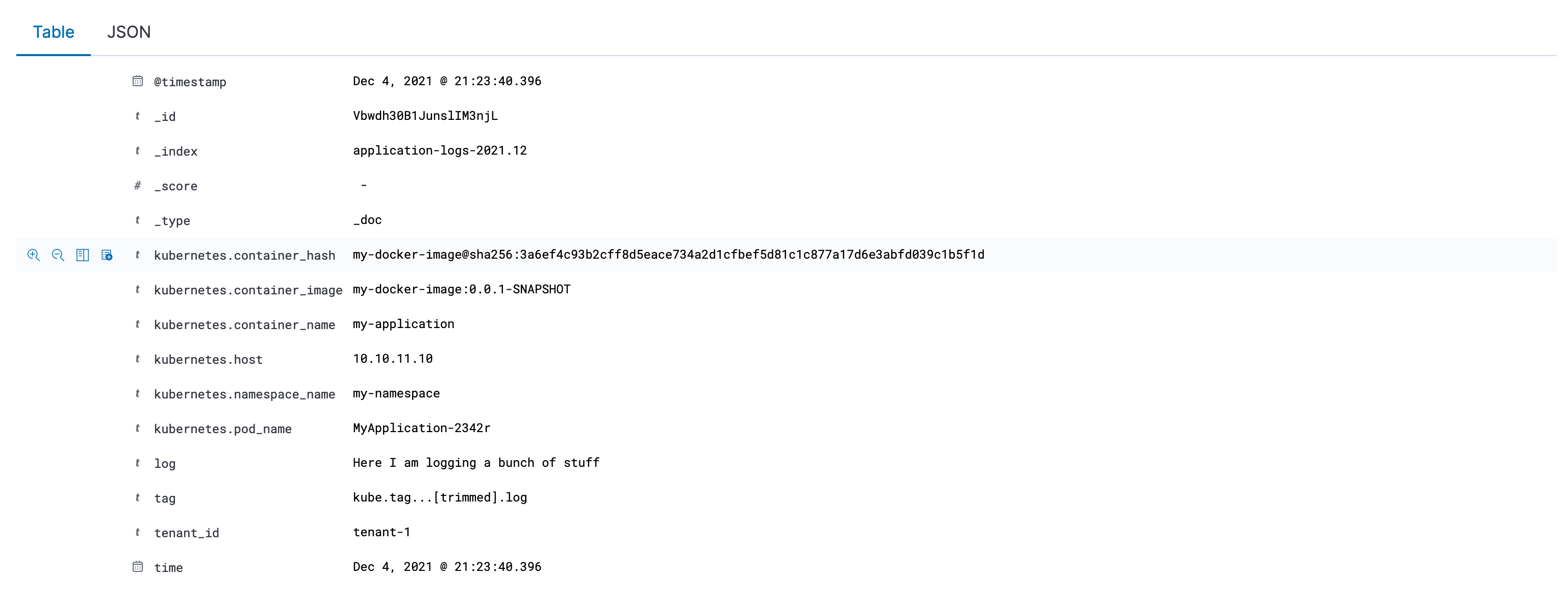

After the apply of the above init container we get the multi tenancy on OpenSearch; the users will be restricted to access their logs since we’re filtering based on the field “tenant_id”.

logs_screen log_screen

Conclusion

In this post we managed to have a single shared index for all the tenants we have by specifying the routing key and, with a bunch of roles for ElasticSearch we were also able to restrict what documents a tenant could see. This allowed us to save memory and cpu since we ended up by having just one index instead of a dedicated index per tenant.

In the next post we will check how to monitor OpenSearch and FluentD with Prometheus.
